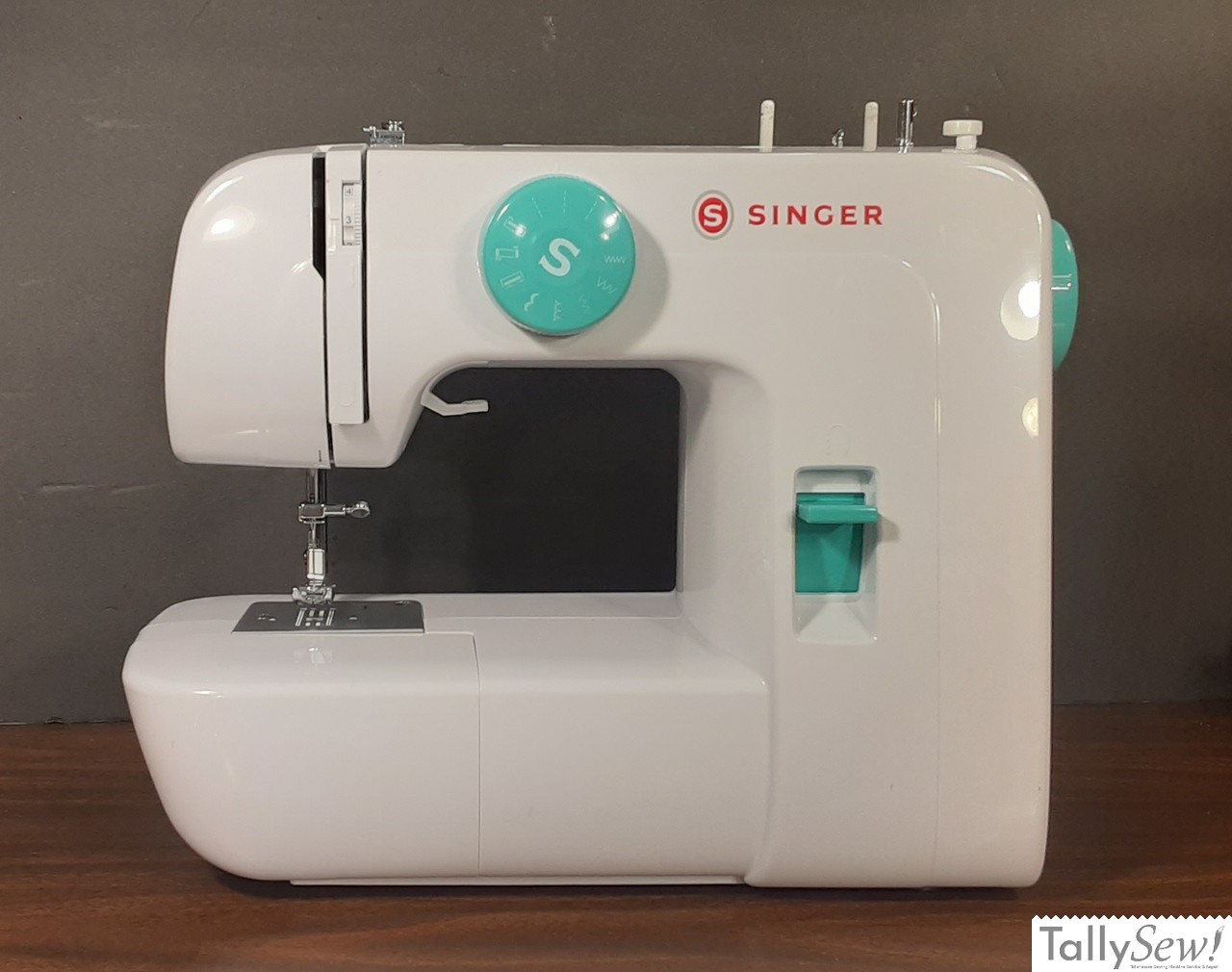

Singer 1234

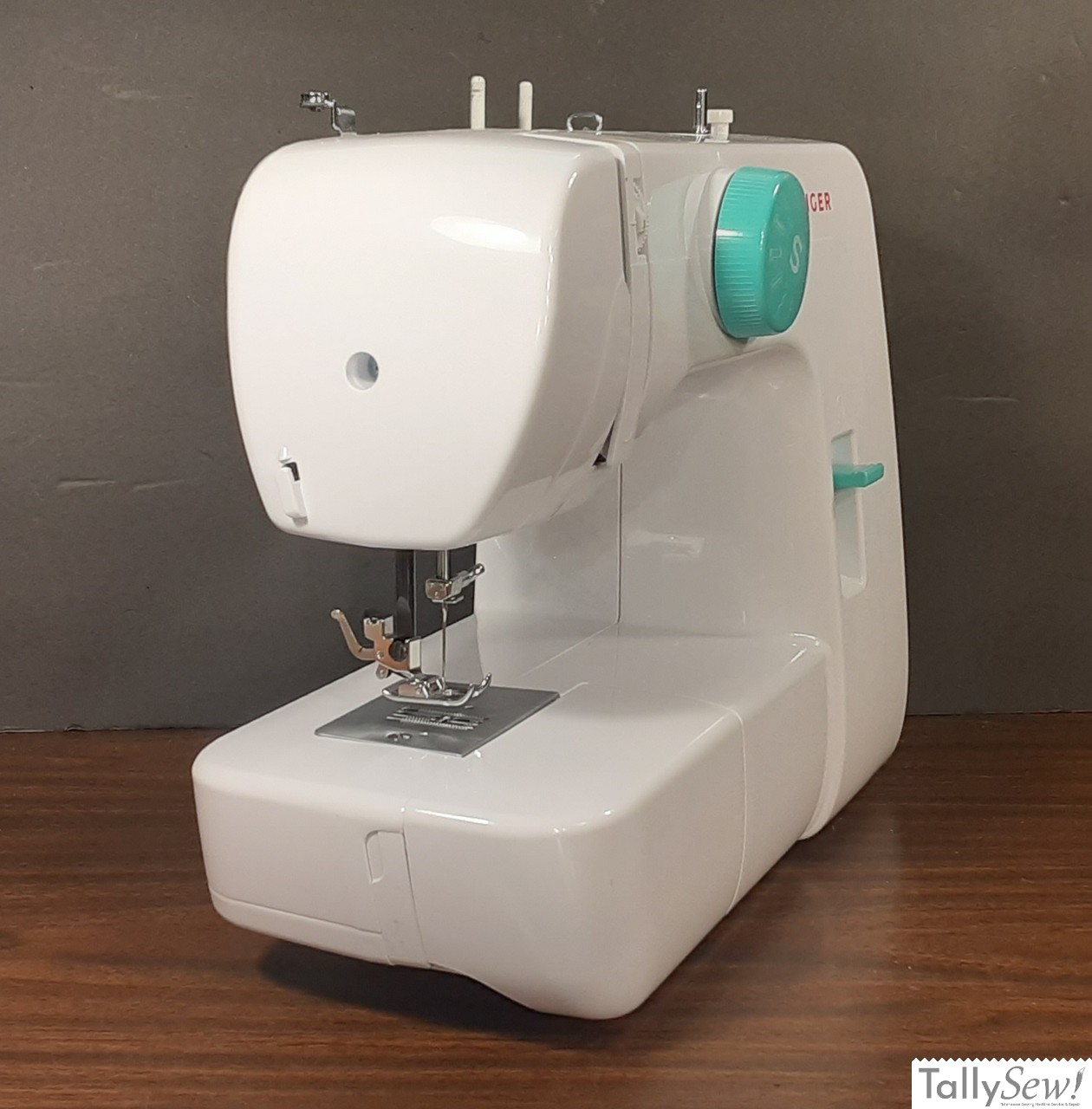

The Singer 1234 is an entry level machine featuring 6 stitches including the 4 step button hole.

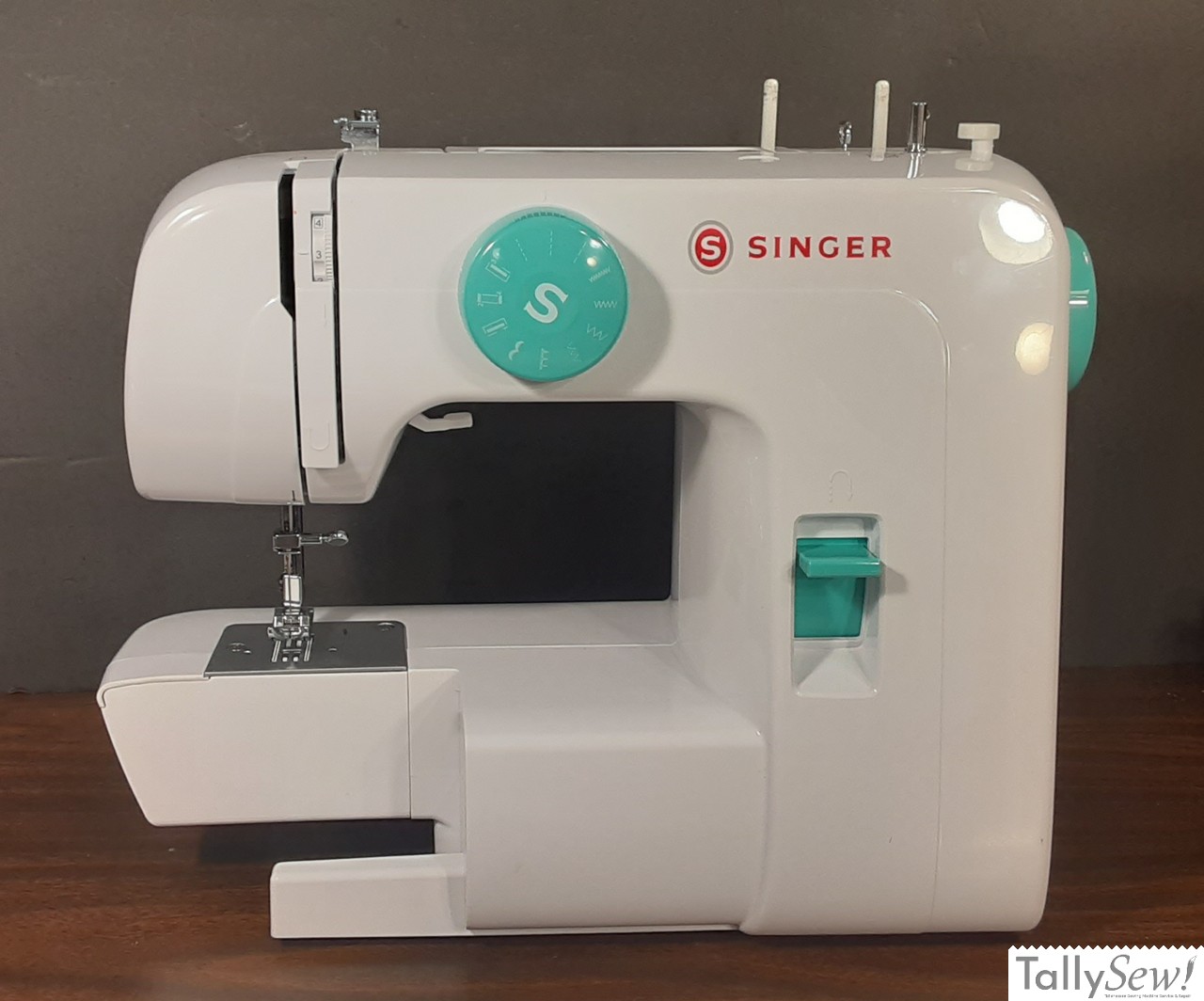

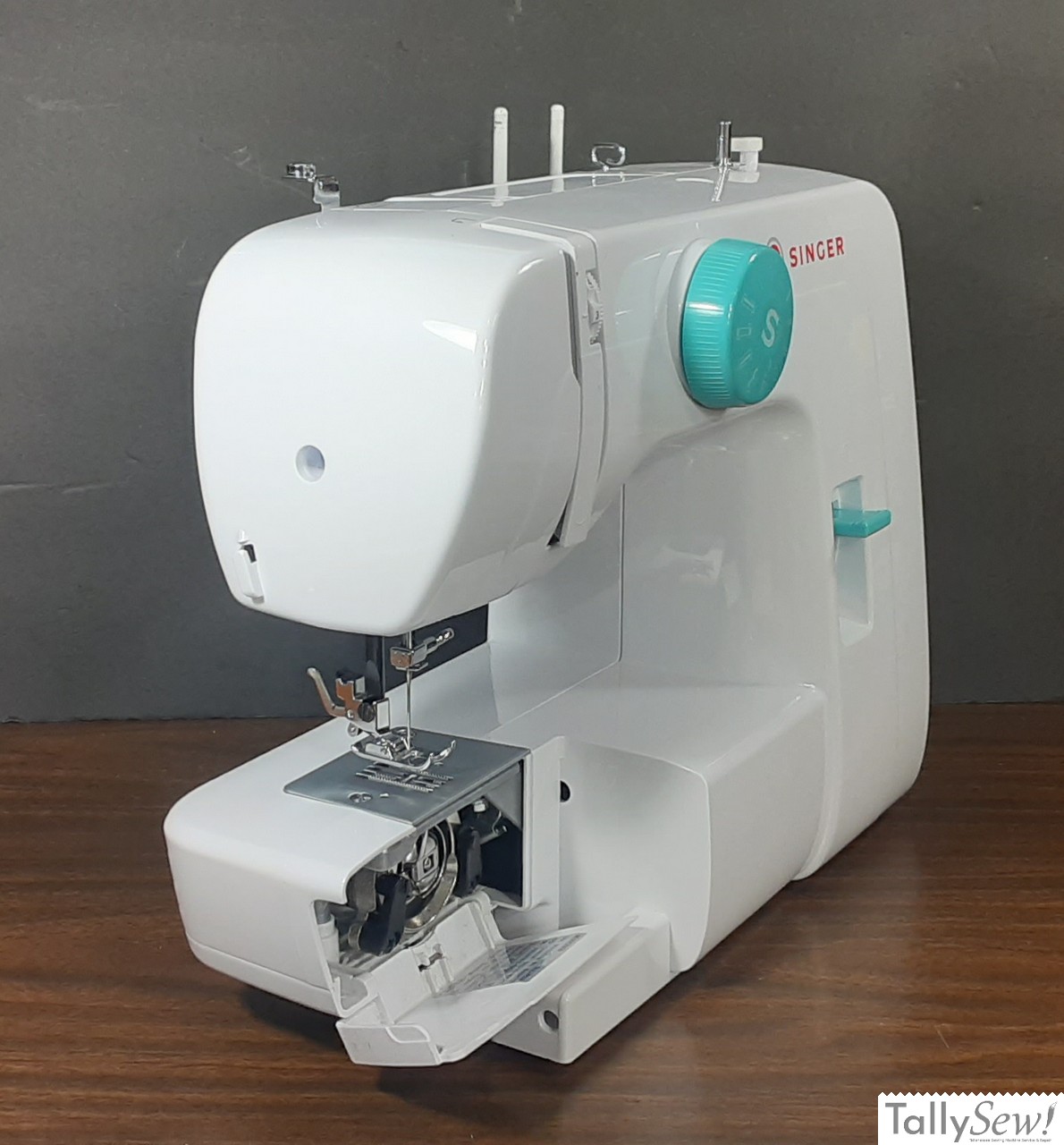

Convertible free arm

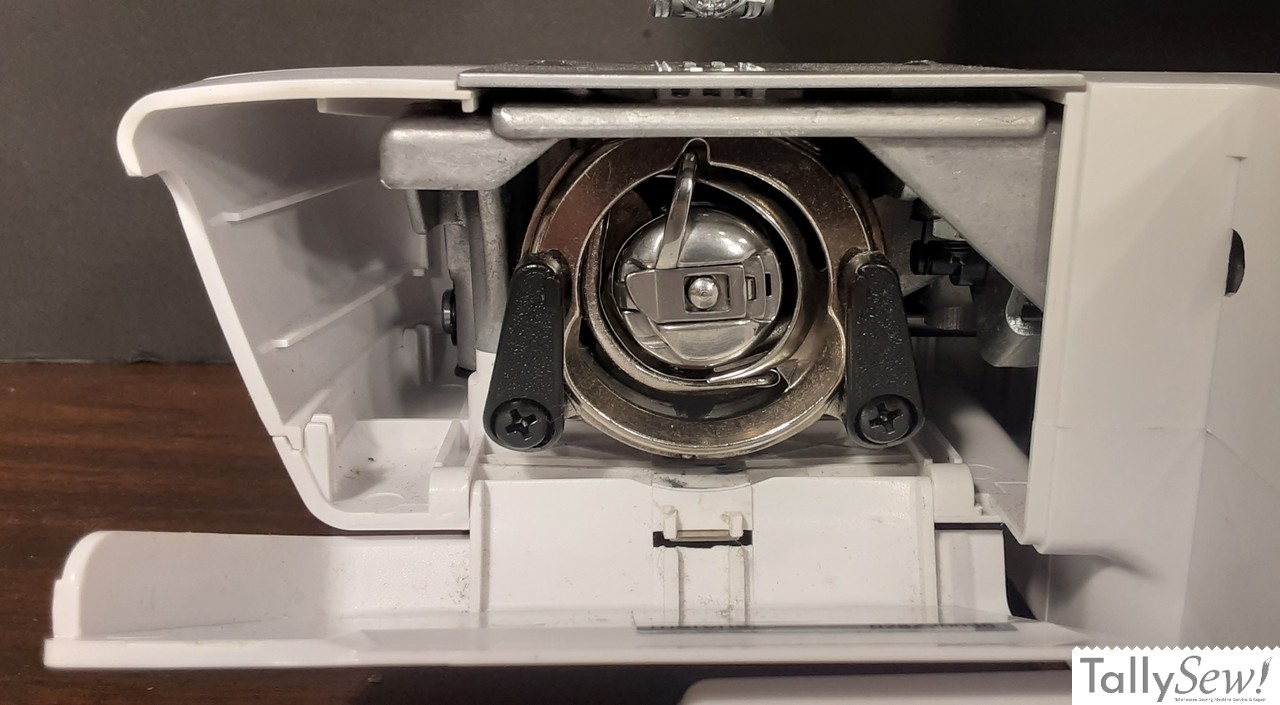

You can remove the accessories trey to use the free arm, and you have to remove it to get to the bobbin case behind the little door that opens down. The bobbin case and bobbin are standard class 15, simple and effective.

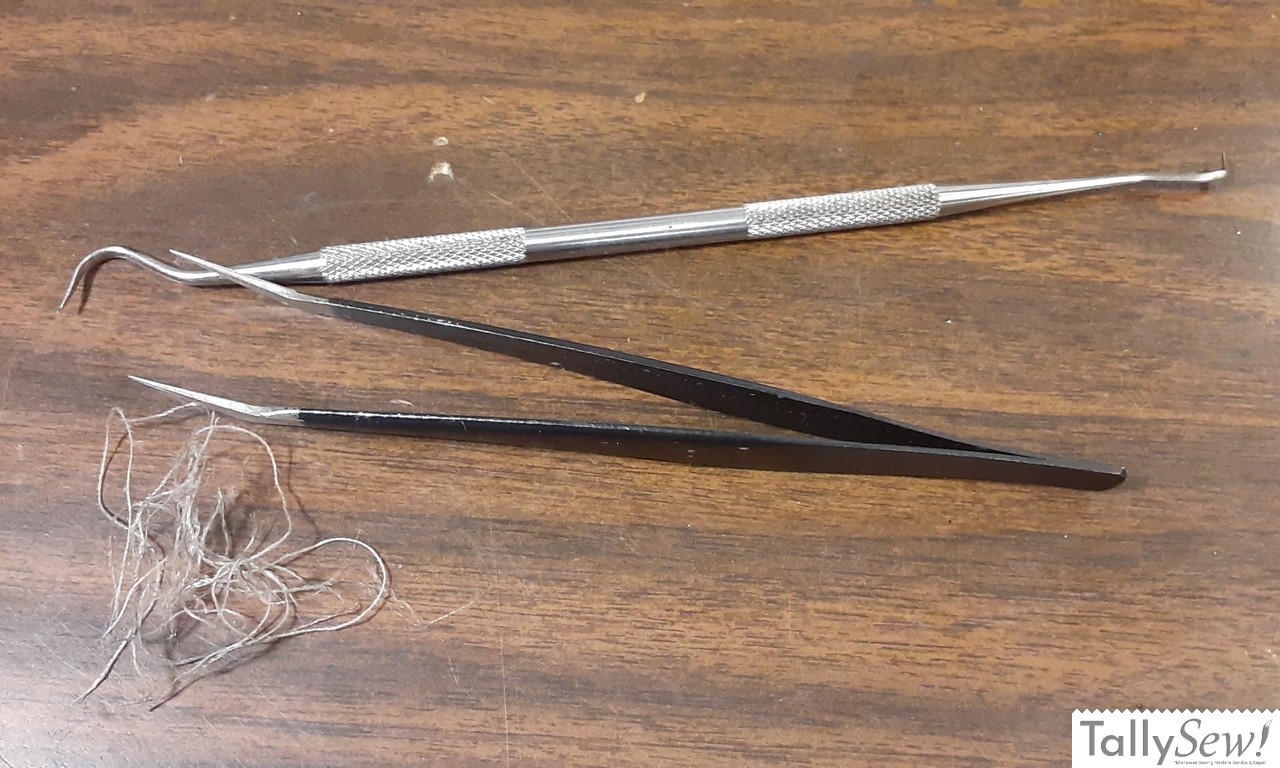

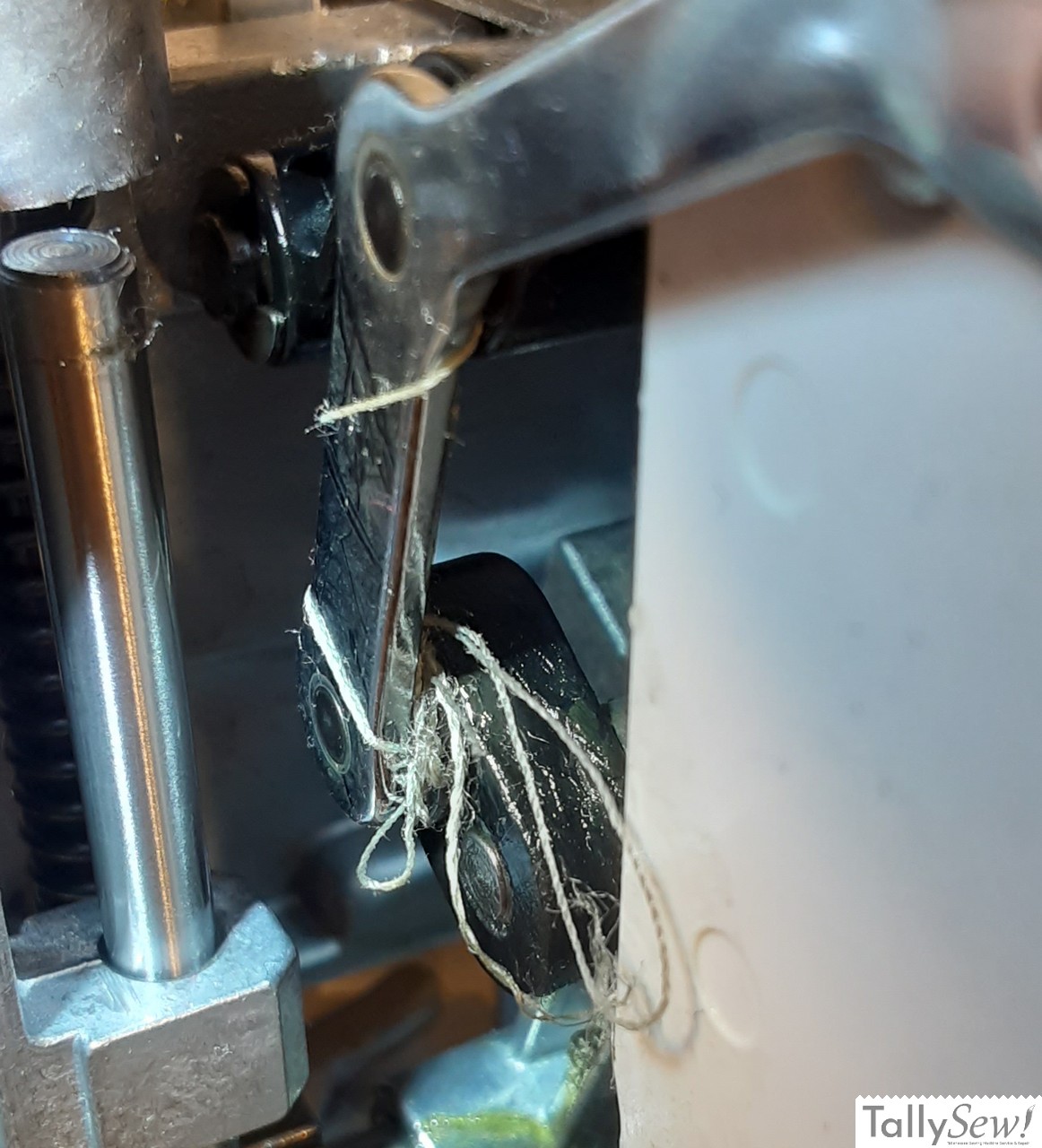

Binding take up arm
This machine came in with a thread wound into the take up arm that took me a while to clear out. It works great now.

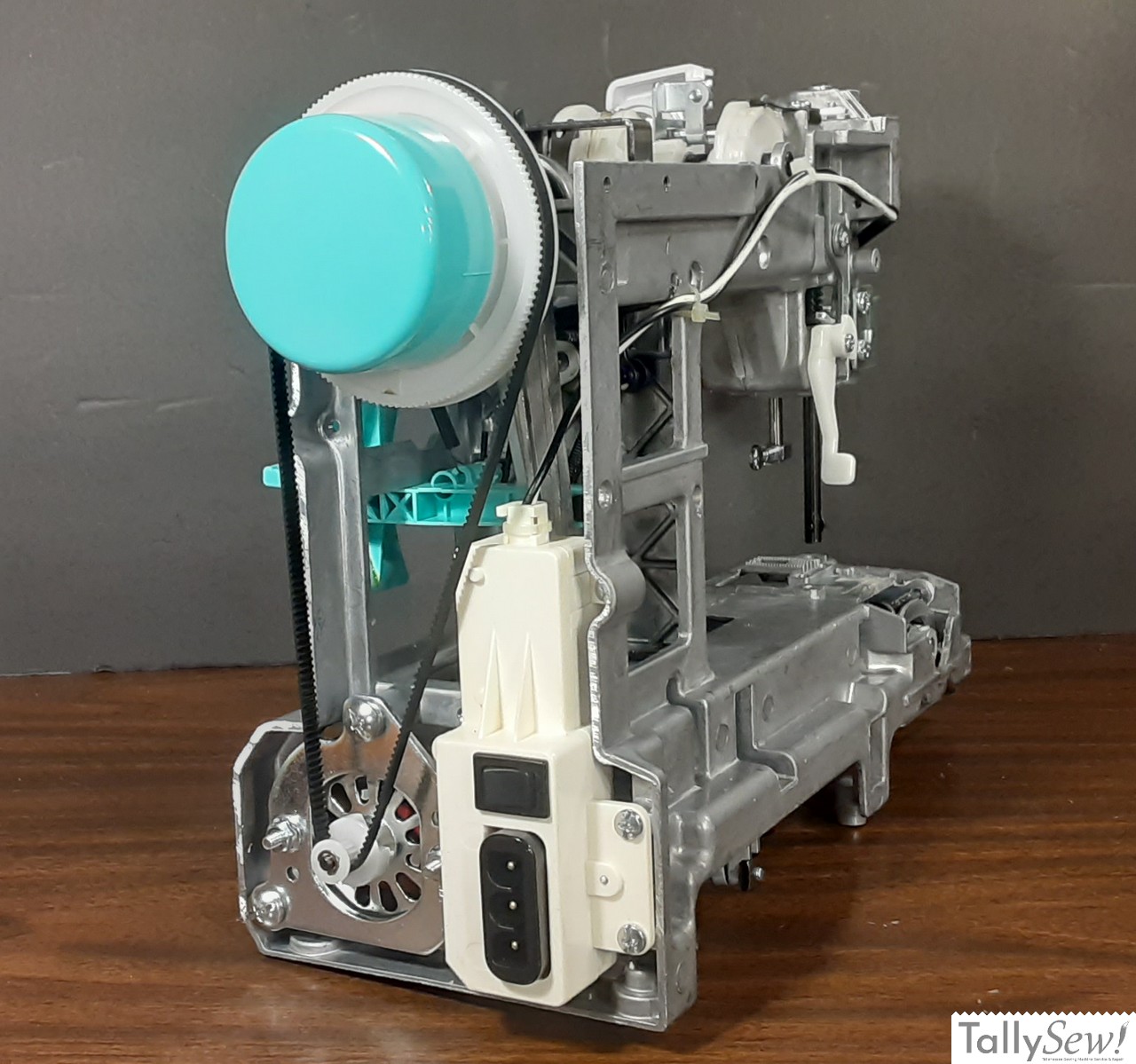

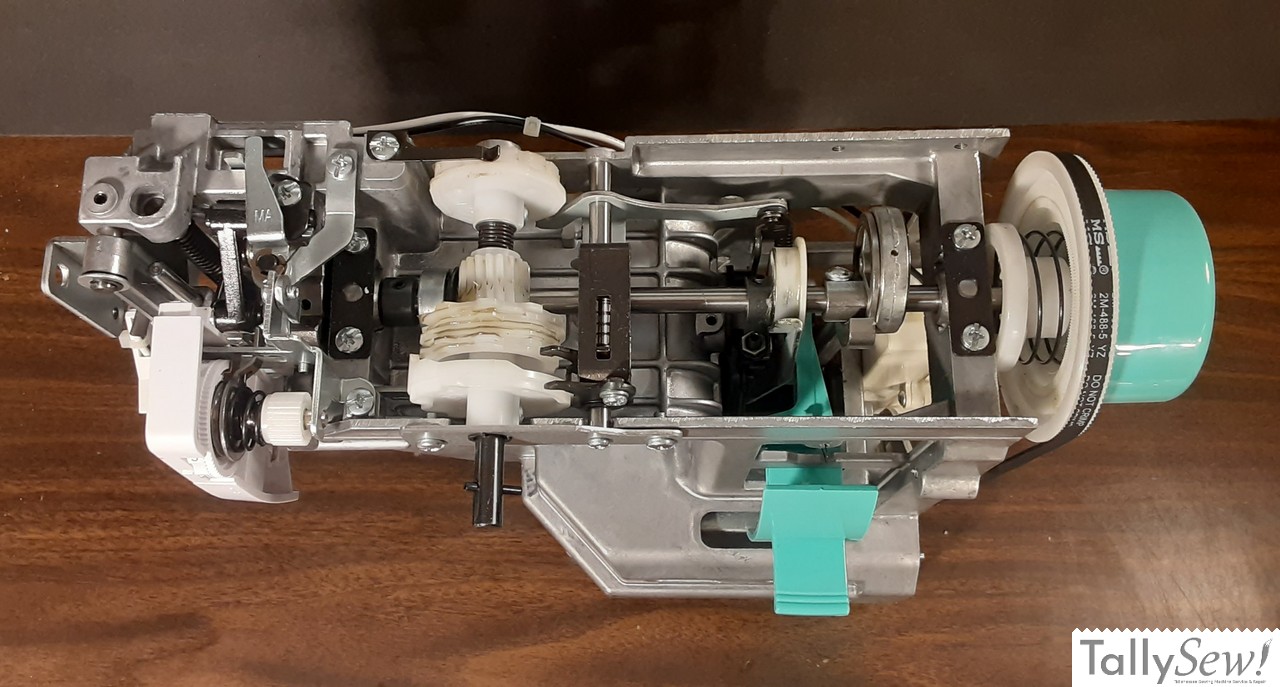

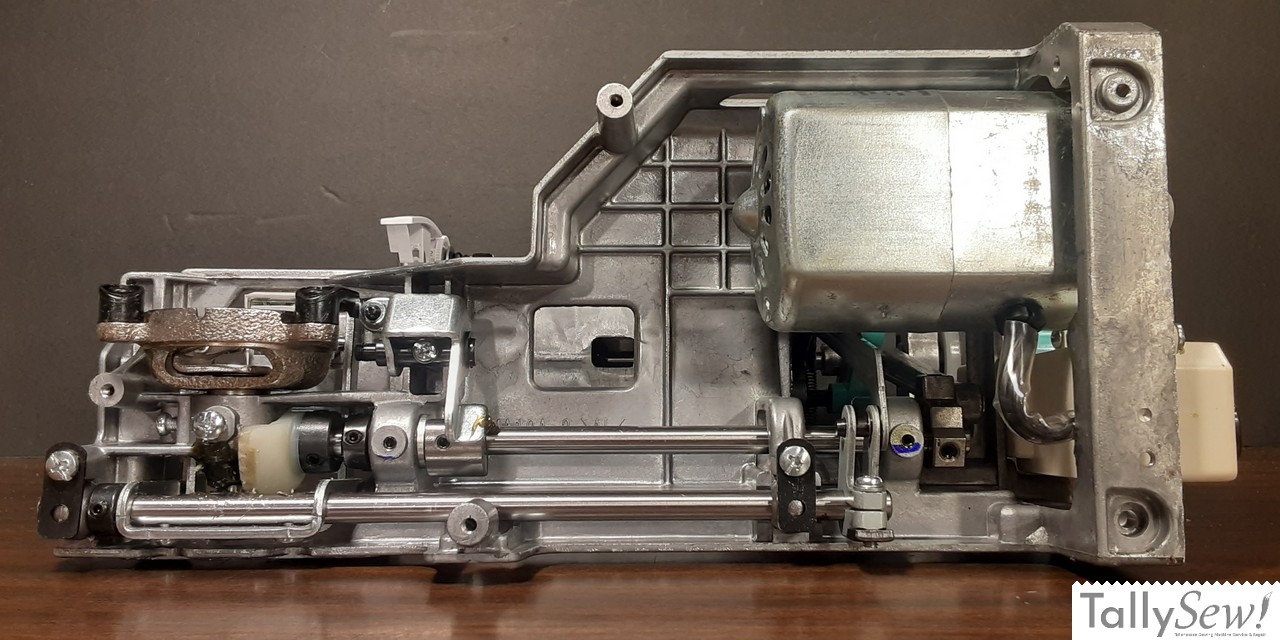

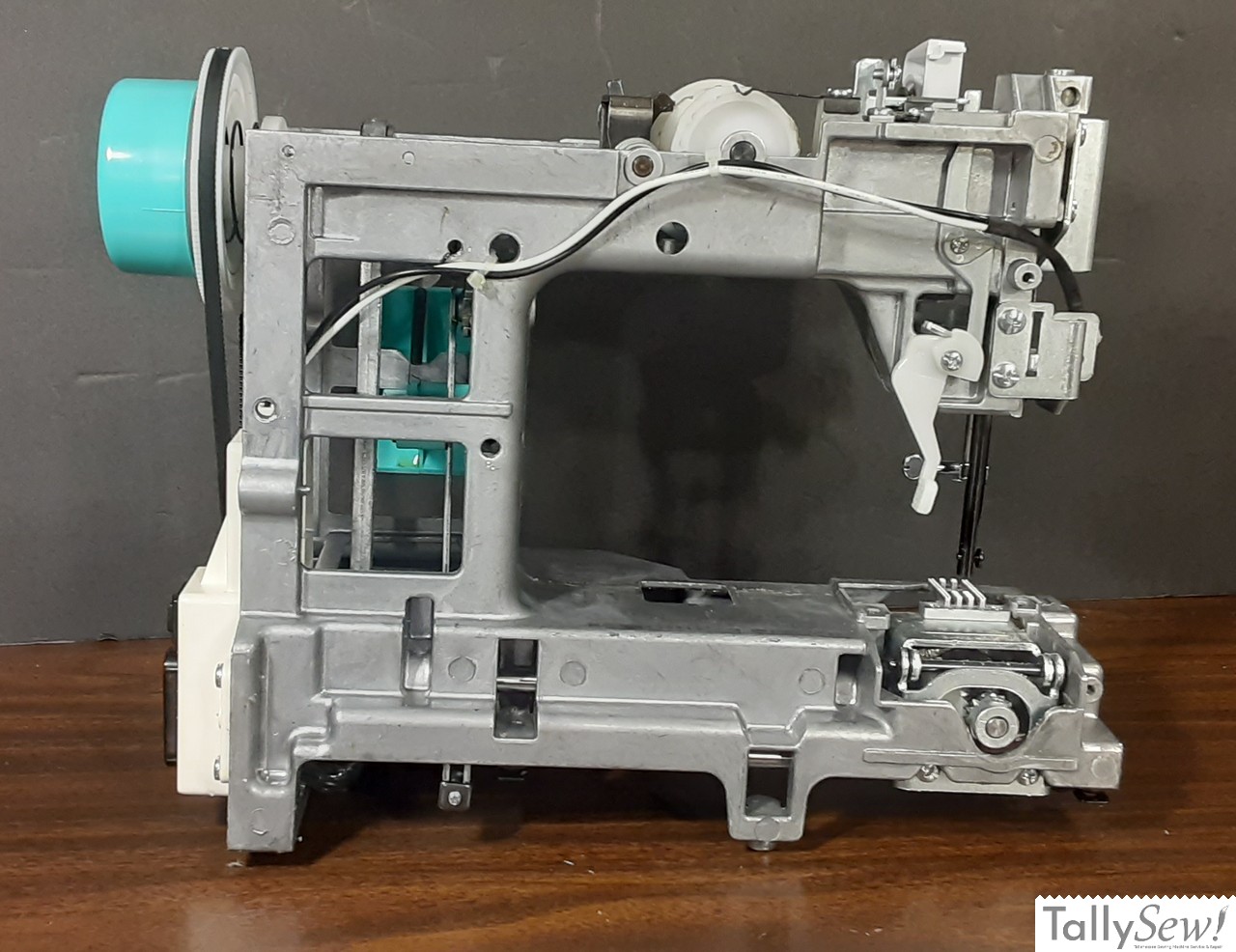

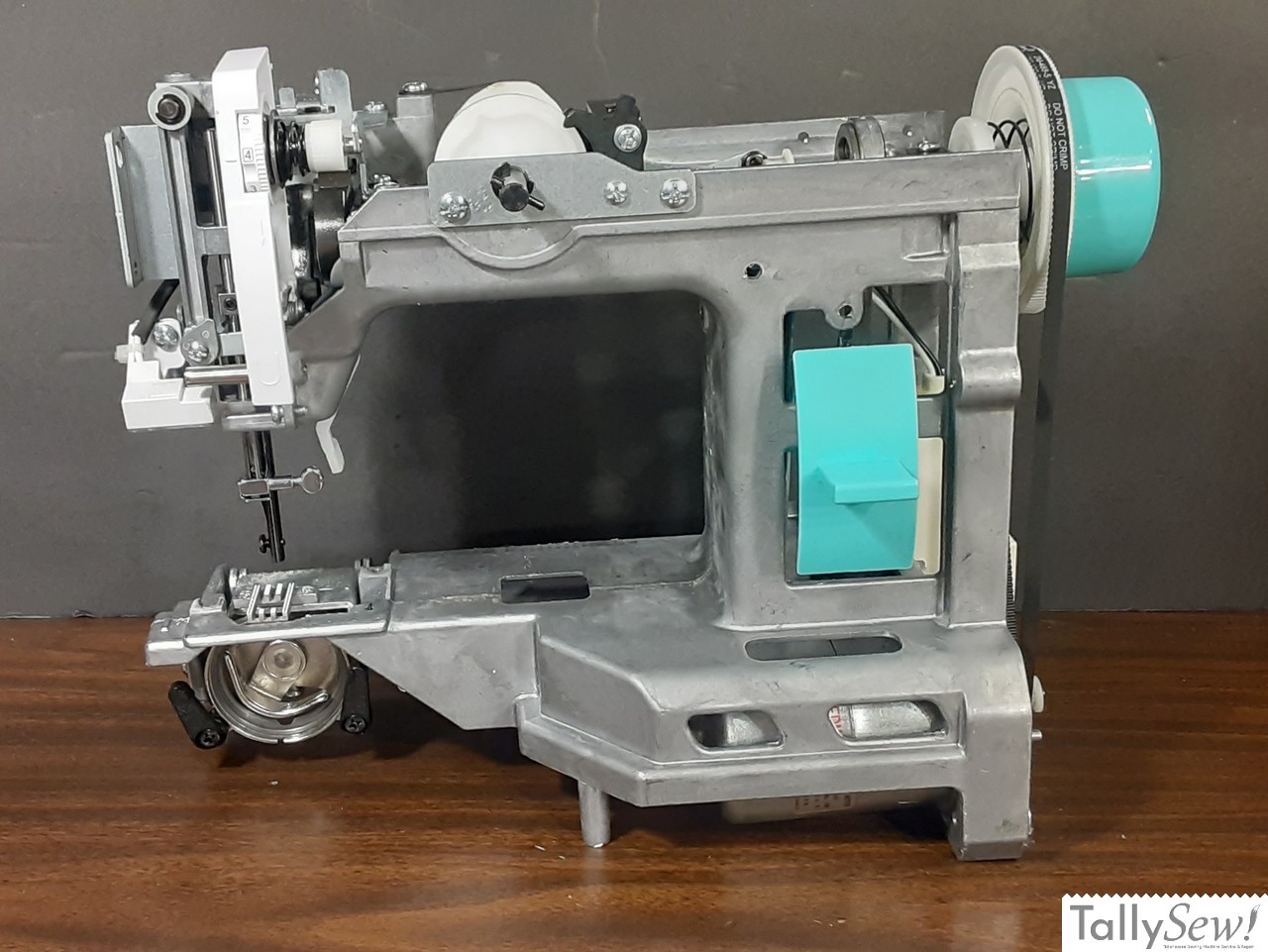

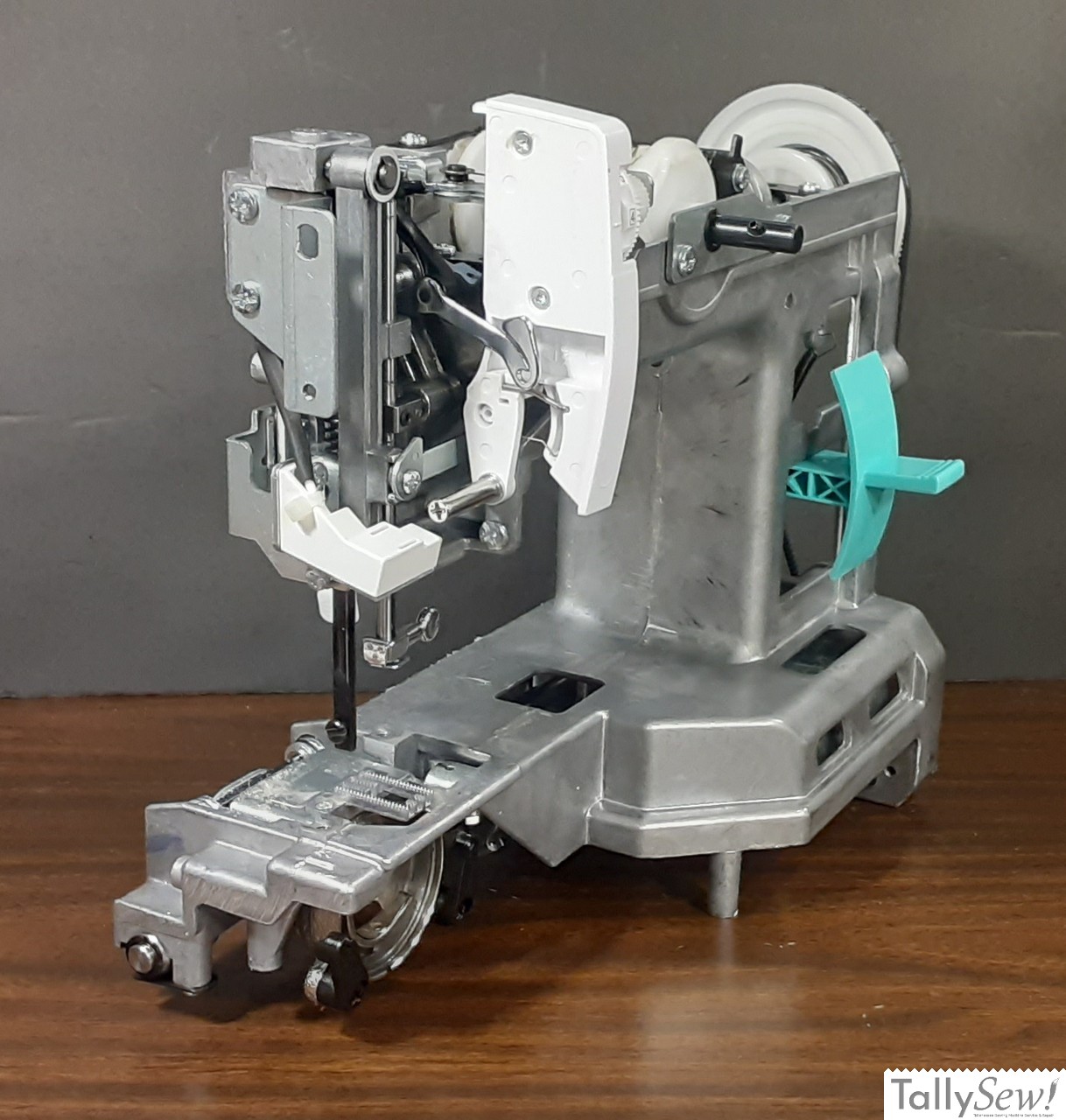

Under the plastic shell
Most modern sewing machines have a plastic shell that covers a metal skeleton and this machine is no different. As you can see this machine has a plastic cam stack and hook drive gear, but that’s standard for machines now.

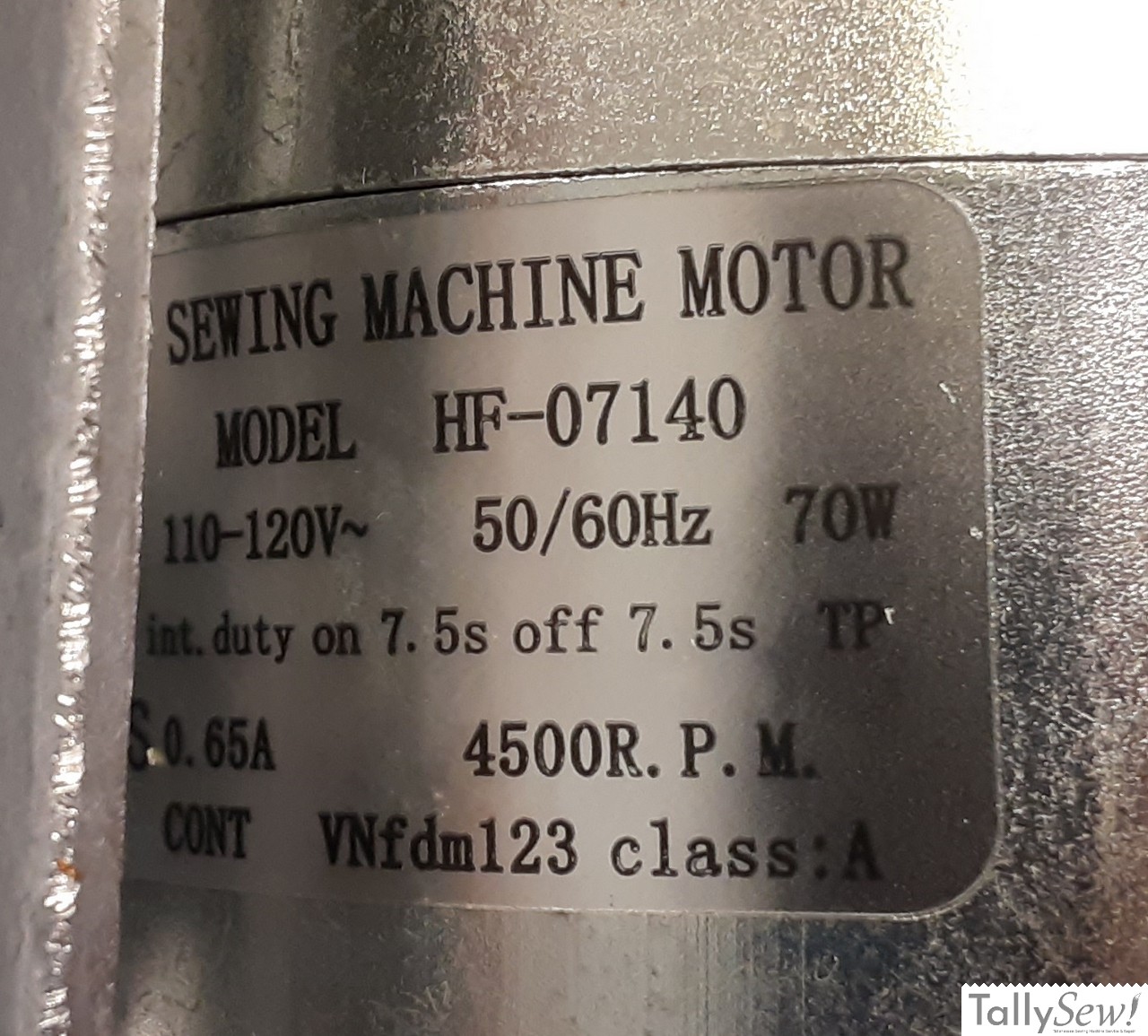

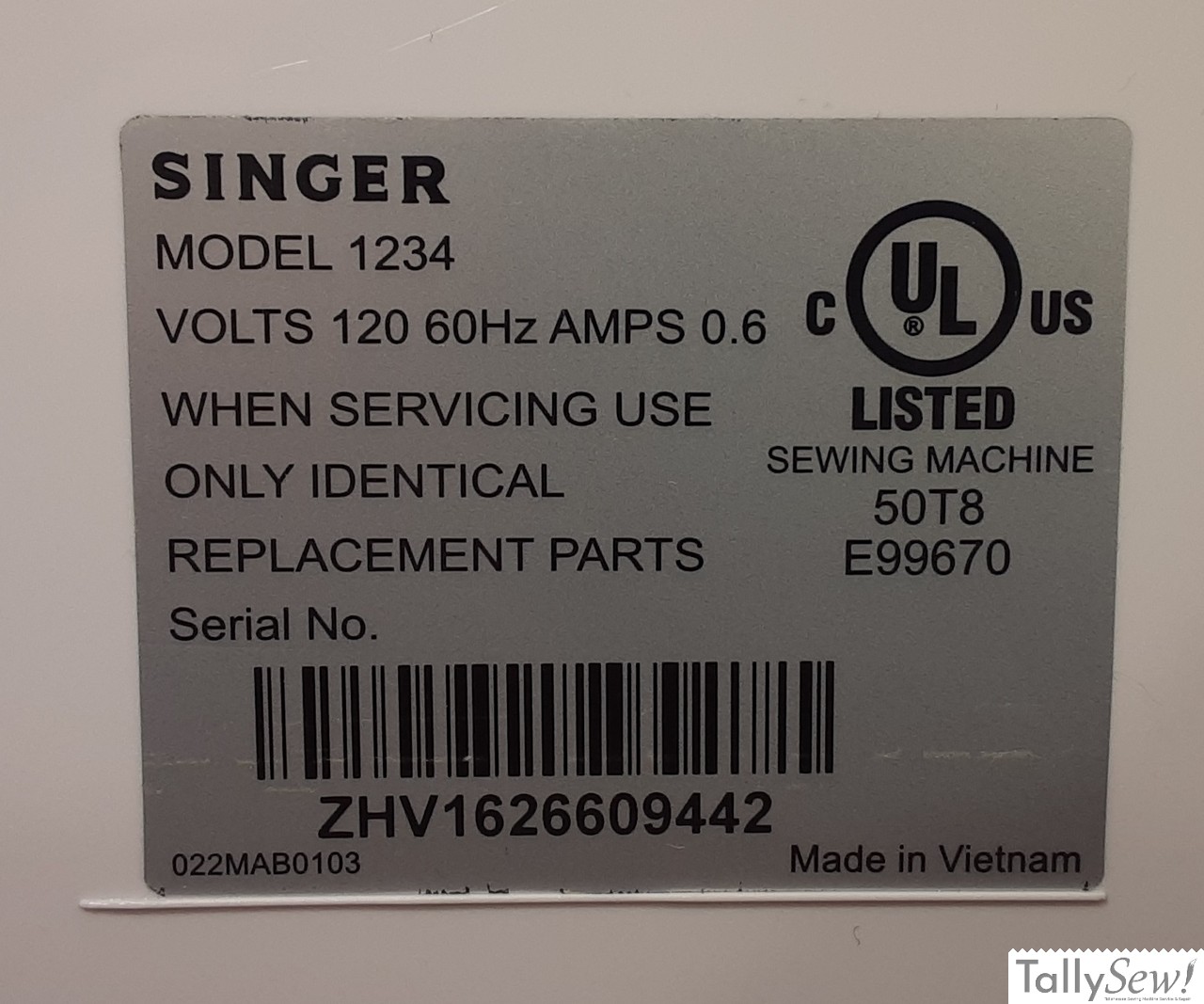

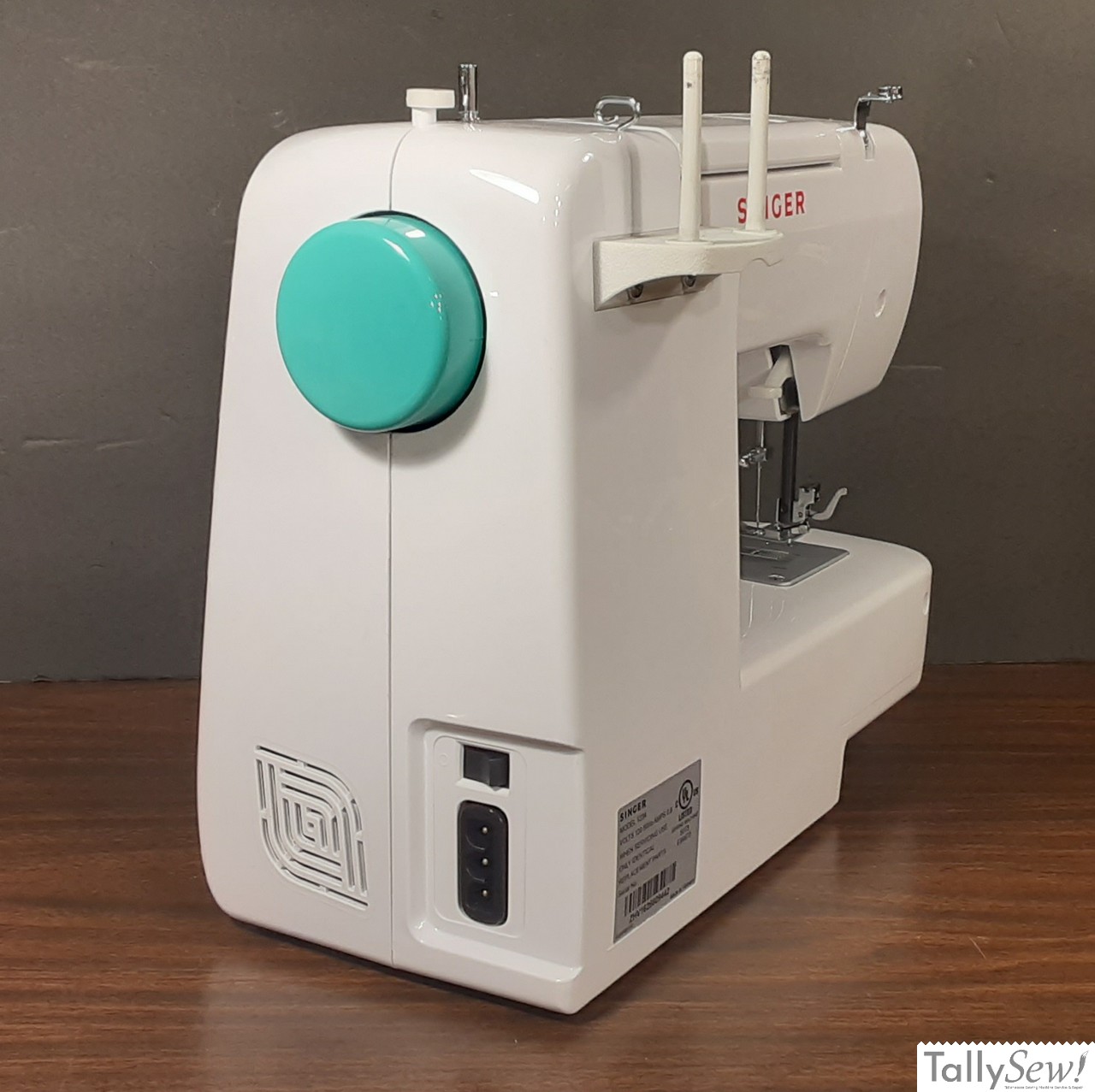

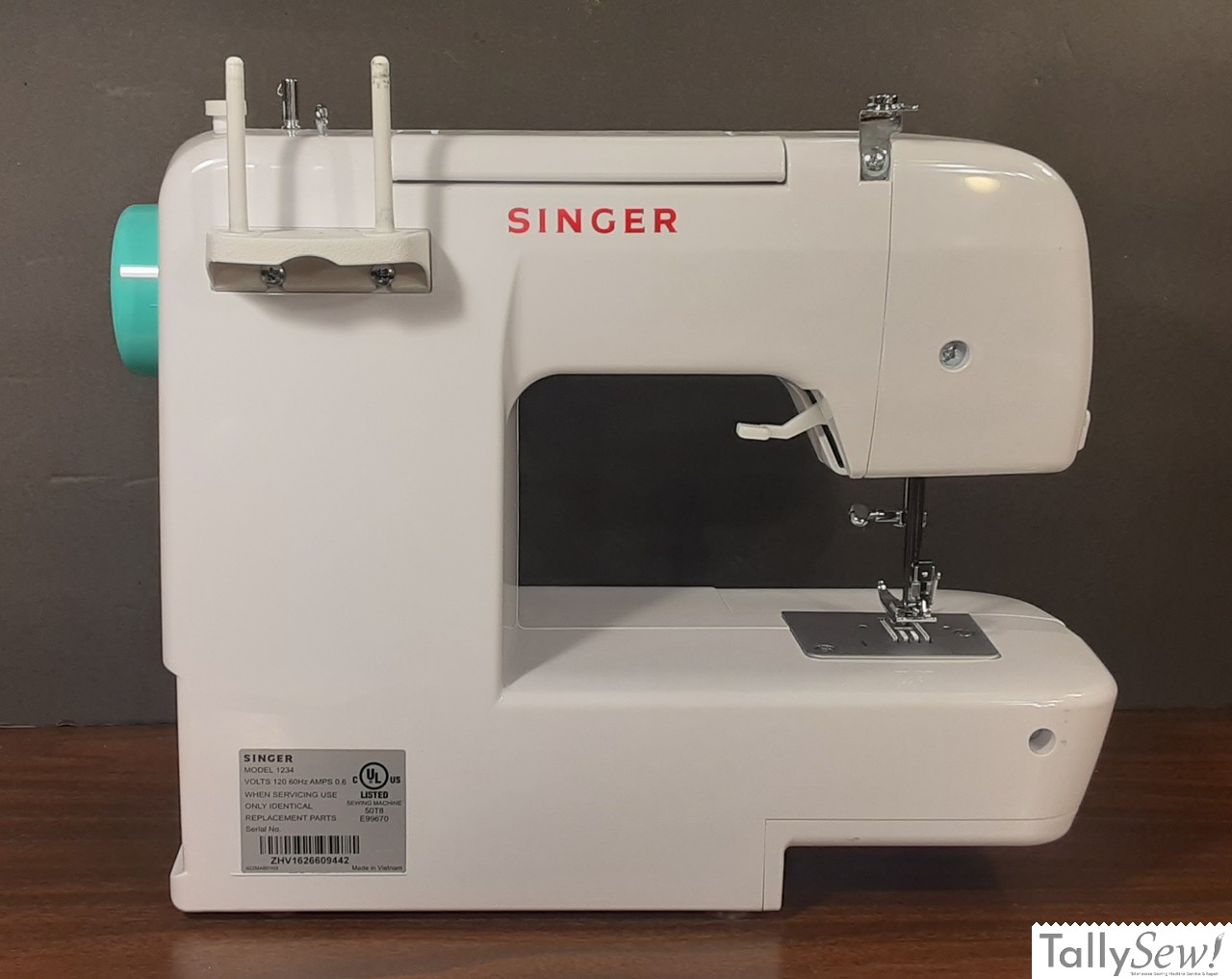

Information Plates
Above you’ll find the model information on the left, and the motor information on the right. It’s kind of funny the machine info says .6A and the motor claims .65A. That’s a good indication that they source the motors as they go as opposed to having one made specifically for the machine… btw, it’s not uncommon at all for manufactures to do that.
Specifications
| Brand | Singer |
| Model | 1234 |
| Manufactured By | Singer |
| Made In | Vietnam |
| Years Produced | 2015 |
| Hook Type | Oscillating |
| Bobbin | Class 15 |
| Bobbin Case | Class 15, “1 o’clock” position finger |
| Needle System | 15×1 |
| Foot Type | Low Shank |
| Construction | Metal and Plastic |
| Construction Drivetrain | Metal and Plastic |
